Chassis & node trays: procurement and acceptance
Treat a small part as an exact assembly
Original editorial guidance. Not manufacturer validation, a service certification or a contractual promise.
- Chapters
- 4
- Checklist items
- 5
- Related family
- Chassis & node trays
- Evidence stance
- Original guidance
Identify the purchasing unit
Browse chassis & node trays by manufacturer and exact identifier. This directory separates technical identity from commercial stock. Filter the evidence depth, compare recorded fields and carry a shortlist into your quotation draft.
Keep the manufacturer number and revision instead of a generic accessory name.
Confirm the target chassis, connection points, mounting positions and required quantity.
Resolve dependencies before requesting a price
Ask whether screws, brackets, latches, cables and dependent pieces are included.
Use actual dimensions and labels when parts appear similar across product generations.
Evidence at acceptance
Request photographs of the offered assembly and agree acceptable cosmetic condition before dispatch.
Request: Complete assembly, Part label, Mounting points, Connectors when present, All supplied hardware. Attach these to the actual quotation or receiving record. A product-family image or an AI warehouse scene cannot replace evidence of the offered unit.
Create a useful handover record
Use the comparison table to inspect only fields supplied for each record. A blank cell means that information is not recorded; it does not mean a feature is unsupported. Resolve material differences with the supplier before approving a replacement.
Export the full identifiers and quantities to a quotation draft. Include target platform, condition, destination, accessories, test evidence and the party responsible for final technical approval. This planning tool does not issue a price, allocate stock or create license entitlement.
At receipt, match the item labels and accessories to the accepted list. Record discrepancies before integration. Keep the source revision and final bill of materials together so future maintenance is checked against the configuration actually delivered.

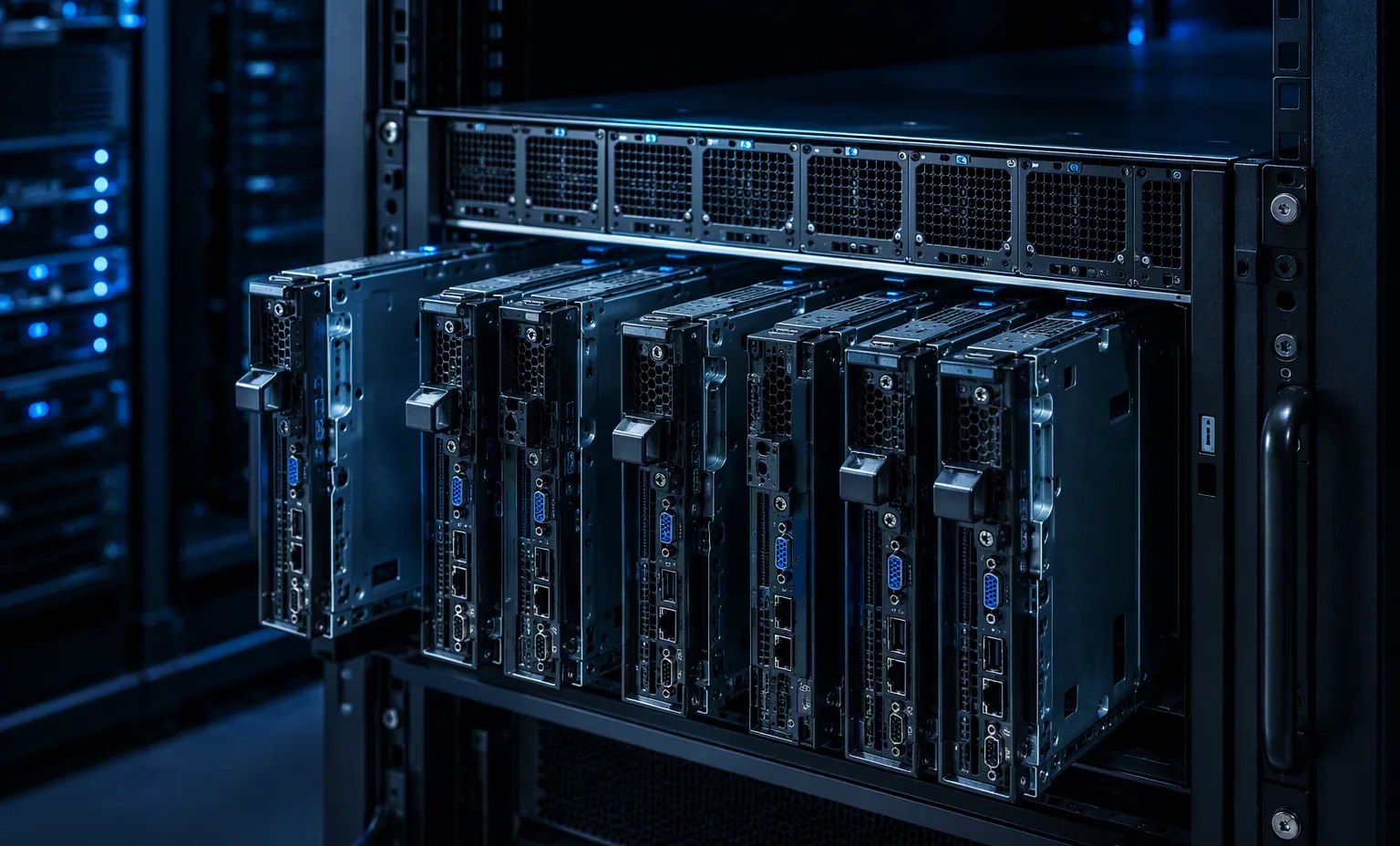

Facility reference scenes
Warehouse and test-bench environment for the equipment family this guide supports.
Your inquiry checklist
- Keep the manufacturer number and revision instead of a generic accessory name.
- Confirm the target chassis, connection points, mounting positions and required quantity.
- Ask whether screws, brackets, latches, cables and dependent pieces are included.
- Use actual dimensions and labels when parts appear similar across product generations.
- Request photographs of the offered assembly and agree acceptable cosmetic condition before dispatch.
